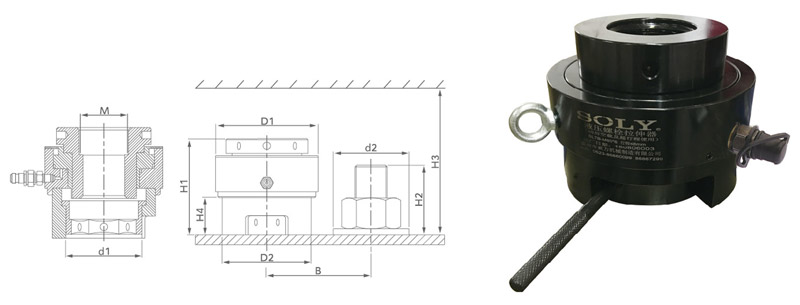

單級矮型拉伸器，薄型液壓螺栓拉伸器，單級液壓螺栓拉伸器，SL-TD單級矮型拉伸器 技術參數：
| 型號 | 螺紋規格 M |
拉伸力 KN |
尺寸(mm) | 活塞 | 重量 kg |
|||||||||
| D1 | D2 | d1 | d2 | H1 | H2 | H3 | H4 | B | 面積 cm² |
行程 mm |
||||
| SLTD1 | M20×2.5 | 296 | 97 | 84 | 60 | 35 | 95 | 38 | 130 | 20 | 50+d2/2 | 37 | 6 | 2.8 |
| M22×2.5 | 97 | 84 | 60 | 45 | 95 | 42 | 130 | 20 | 50+d2/2 | 37 | 2.8 | |||
| M24×3 | 97 | 84 | 60 | 45 | 95 | 46 | 130 | 20 | 50+d2/2 | 37 | 2.8 | |||
| M27×3 | 97 | 84 | 60 | 45 | 95 | 52 | 130 | 20 | 50+d2/2 | 37 | 2.8 | |||
| SLTD2 | M24×3 | 440 | 114 | 98 | 72 | 45 | 108 | 46 | 150 | 26 | 58+d2/2 | 55 | 8 | 4.2 |
| M27×3 | 114 | 98 | 72 | 45 | 108 | 52 | 150 | 26 | 58+d2/2 | 55 | 4.2 | |||
| M30×3.5 | 114 | 98 | 72 | 55 | 108 | 57 | 150 | 26 | 58+d2/2 | 55 | 4.2 | |||
| M33×3.5 | 114 | 98 | 72 | 55 | 108 | 63 | 150 | 26 | 58+d2/2 | 55 | 4.2 | |||
| SLTD3 | M36×4 | 664 | 145 | 122 | 92 | 65 | 142 | 69 | 190 | 46 | 74+d2/2 | 83 | 8 | 8.1 |
| M39×4 | 145 | 122 | 92 | 65 | 142 | 74 | 190 | 46 | 74+d2/2 | 83 | 8.1 | |||
| M42×4.5 | 145 | 122 | 92 | 75 | 142 | 80 | 190 | 46 | 74+d2/2 | 83 | 8.1 | |||
| M45×5.5 | 145 | 122 | 92 | 75 | 142 | 86 | 190 | 46 | 74+d2/2 | 83 | 8.1 | |||
| SLTD4 | M45×4.5 | 1080 | 180 | 155 | 117 | 75 | 200 | 86 | 255 | 75 | 92+d2/2 | 135 | 12 | 20 |
| M48×5 | 180 | 155 | 117 | 90 | 200 | 92 | 255 | 75 | 92+d2/2 | 135 | 20 | |||
| M52×5 | 180 | 155 | 117 | 90 | 200 | 99 | 255 | 75 | 92+d2/2 | 135 | 20 | |||
| M56×5.5 | 180 | 155 | 117 | 100 | 200 | 107 | 255 | 75 | 92+d2/2 | 135 | 20 | |||
| SLTD5 | M60×5.5 | 1440 | 250 | 220 | 156 | 100 | 265 | 114 | 340 | 95 | 127+d2/2 | 180 | 15 | 48 |
| M64×6 | 250 | 220 | 156 | 110 | 265 | 122 | 340 | 95 | 127+d2/2 | 180 | 48 | |||
| M68×6 | 250 | 220 | 156 | 110 | 265 | 130 | 340 | 95 | 127+d2/2 | 180 | 48 | |||
| M72×6 | 250 | 220 | 156 | 120 | 265 | 137 | 340 | 95 | 127+d2/2 | 180 | 48 | |||
| M76×6 | 250 | 220 | 156 | 140 | 265 | 145 | 340 | 95 | 127+d2/2 | 180 | 48 | |||
| M80×6 | 250 | 220 | 156 | 140 | 265 | 152 | 340 | 95 | 127+d2/2 | 180 | 48 | |||
| SLTD6 | M80×6 | 2000 | 285 | 250 | 194 | 140 | 310 | 152 | 405 | 123 | 145+d2/2 | 250 | 15 | 66 |
| M85×6 | 285 | 250 | 194 | 160 | 310 | 162 | 405 | 123 | 145+d2/2 | 250 | 66 | |||
| M90×6 | 285 | 250 | 194 | 160 | 310 | 171 | 405 | 123 | 145+d2/2 | 250 | 66 | |||
| M95×6 | 285 | 250 | 194 | 160 | 310 | 181 | 405 | 123 | 145+d2/2 | 250 | 66 | |||
| M100×6 | 285 | 250 | 194 | 175 | 310 | 190 | 405 | 123 | 145+d2/2 | 250 | 66 | |||
